GEE-PE202

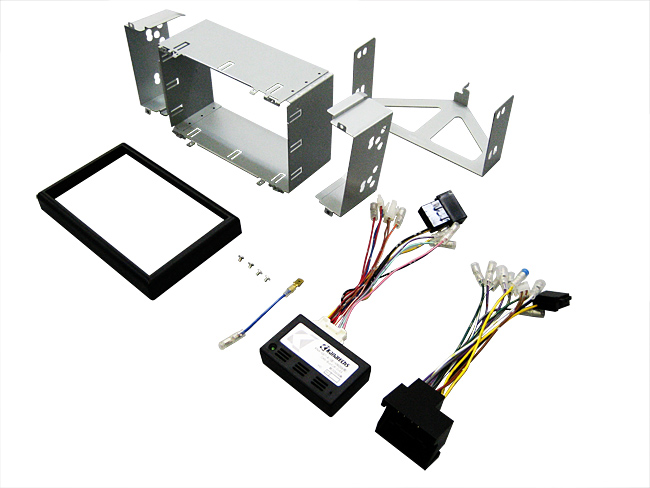

GEE-PE202 Installation example
  • 1.Rear Bracket
  • 2.Installation frame
  • 3.Bracket
  • 4.Panel
  • 5.Antenna power supply conversion cord
  • 6.CAN-Bus Interface
  • 7.Power supply/front speakers/rear speakers connector
  • Etc.
 Designed Installation Size
Double DIN or 1 DIN + 1 DIN
Compatibility
Model Model Year Notes
Peugeot 307 June.2007 - up 1 - 5
CITROEN C2 Jan.2007 - up 1 - 4
CITROEN C3 Jan.2007 - up 1 - 4
Note 1. It is necessary to cut out the center partition of the Double-DIN size space in the car.
Note 2. Installation of 1DIN car A/V only is not recommended.
Note 3. Information display ceases to display Factory radio information.
Note 4. Car models with Factory optional navigation system have not been examined.
Note 5. Cannot use the Grade CC steering wireless remote controller.
