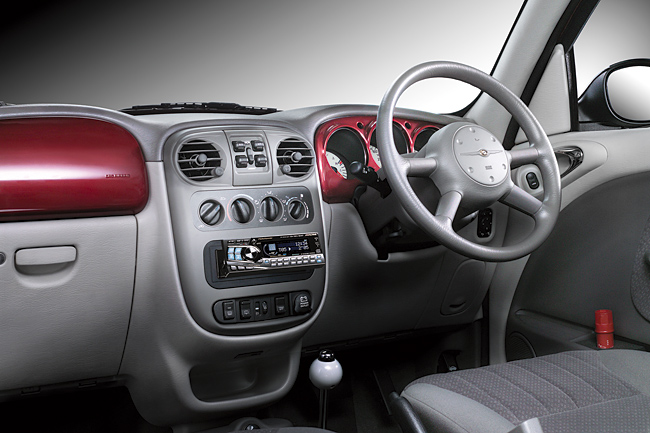

GEE-CR102 Installation example

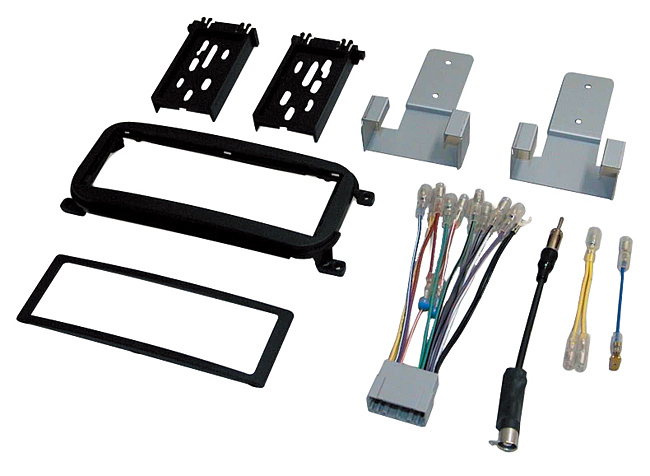

  • 1.Panel(A)(B)
  • 2.Brackets(L)(R)
  • 3.Rear bracket
  • 4.22p connector
  • 5.Antenna power supplyadaptor
  • Etc.
Designed Installation Size == 1 DIN
Model Model Year Note
PT Cruiser Oct.2001 - Nov.2005 1,2
Voyager Nov.2001 - Feb.2006 1,3,4
Note 1. Factory CD changer becomes inoperable.
Note 2. PT Cruiser cabrio has not been examined.
Note 3. The installation is limited to grade LX (car model with 6speakers).
Note 4. Grade LX Premium which has an automatic sliding door (car model with 10speakers) cannot be installed.
