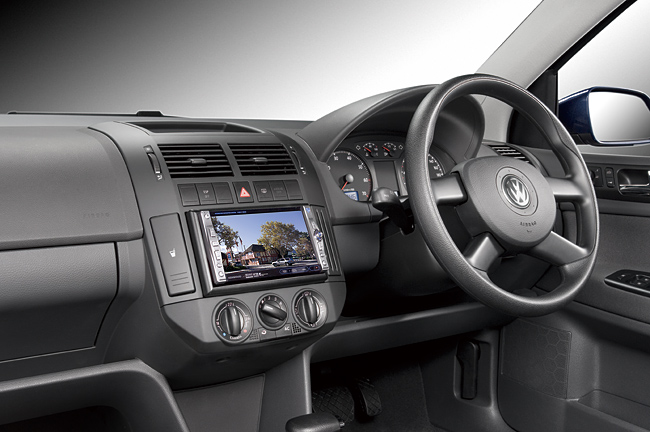

GEE-VW201 Installation example

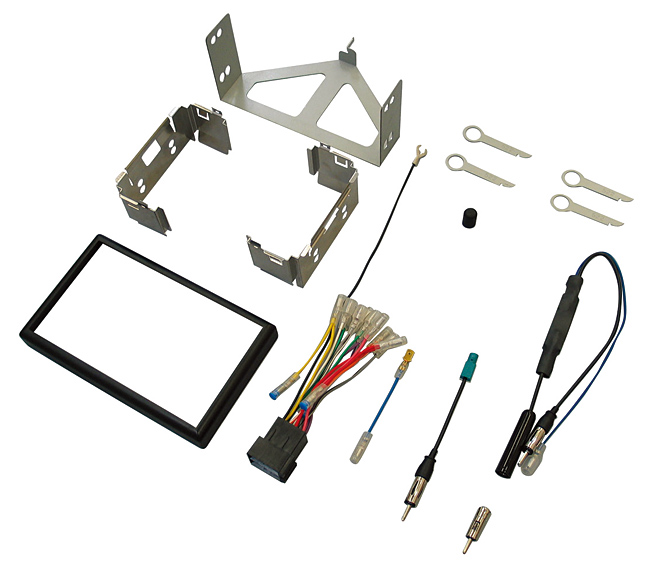

  • 1.Panel
  • 2.Brackets(L)(R)
  • 3.16P connector
  • 4.Special car radio detachment tool
  • 5.Antenna conversion adaptor
  • 6.Antenna booster
  • Etc.
Designed Installation Size
Double DIN or 1 DIN + 1 DIN
Model Model Year Note
Lupo Jul.2001 - Jul.2005 1,2,4,7
Polo Jun.2002 - Sep.2005 3,5,7
Golf IV Aug.2008 - Jun2004 1,2,6,7
Golf IV Wagon Feb.2000 - Oct.2006 1,2,6,7
Note 1. Car models with Factory optional navigation system have not been examined.
Note 2. The cup holder cannot be used.
Note 3. Interference with the cup holder depends on the model of the car A/V.
Note 4. When installing an in-dash TV, the operation of the hazard switch and the air-conditioner switch are obstructed when the monitor extends.
Note 5. This set is compatible in car models with the Factory navigation system (Volkswagen Multimedia Station).
Note 6. Reuse the rubber bushing of the Factory audio system, and install it.
Note 7. Maximum depth of car A/V equipment is 178 mm, but the panel extends outward 10mm.
