GEE-VW205
This kit includes a CAN-Bus interface. A CAN-Bus simplifies the connections of the ACC and Illumination power supplies, and the speed pulse, reverse and parking break signals. It centrally connects at the back of the audio equipment, eliminating cumbersome wiring procedures from the engine room, junction boxes or from behind the instrument panel.

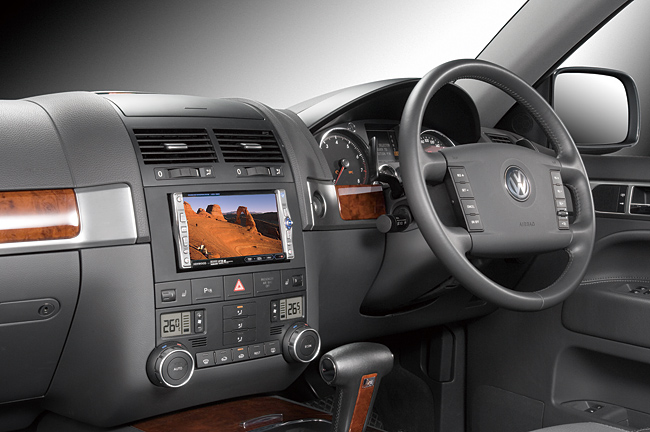

GEE-VW205 Installation example

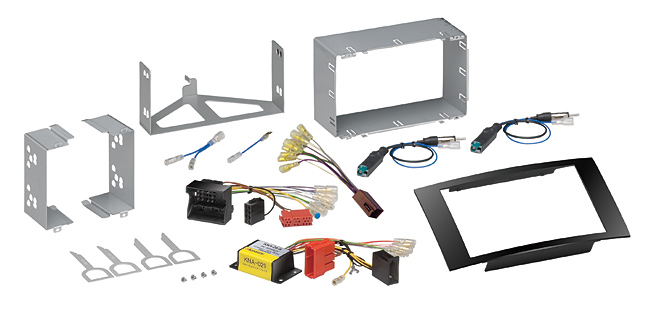

  • 1.Panel
  • 2.Installation frame
  • 3.Bracket(1set)
  • 4.CAN-Bus Interface
  • 5.Connector for power supply / front and rear speakers(16P)
  • 6.Antenna power supply conversion adaptor(FAKRA=>JASO phantom Power Supply Terminal)
  • 7.Factory car radio removal tools
  • Etc.
 Designed Installation Size
Double DIN or 1 DIN + 1 DIN
Compatibility
Model Model Year
Volkswagen Touareg Sep.2003 - May.2007
Note 1. The factory installed CD changer becomes disabled.
Note 2. Incompatible with cars with the factory installed DVD navigation system due to the difference in connector shape.
Note 3. Audio display on the multi-function indicator becomes disabled.
Note 4. Audio control by the switches on the steering wheel become disabled.
