TBXE-T006
The air conditioning control box included in this set allows control of the air conditioning and the information-center-display in aftermarket A/V equipment.

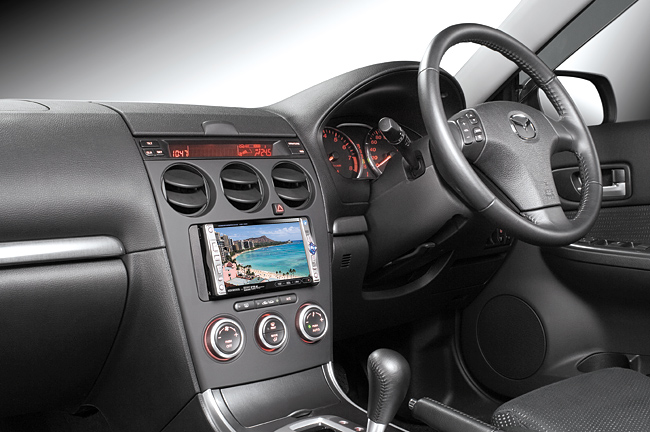

TBXE-T006 Installation example

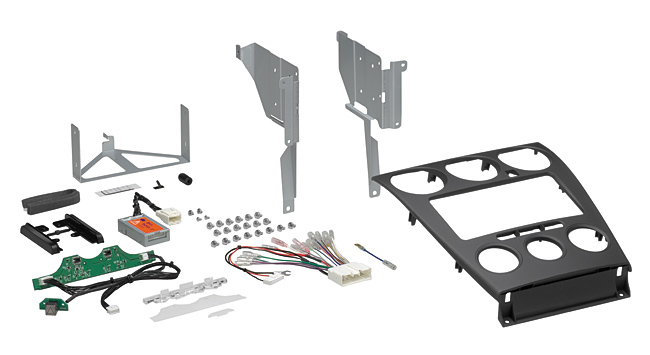

  • 1.Panel
  • 2.Panel(L)(R)
  • 3.Bracket(1set)
  • 4.24P connector
  • 5.Control Box
  • 6.Hazard Switch / Air Conditioning Switch Circuit Board Assembly
  • Etc.
 Designed Installation Size
Double DIN or 1 DIN + 1 DIN
Compatibility
Model No. of Speakers Model Year
MAZDA 6 Sports Sedan 4
7*		 Jun.2005 - Dec.2007
MAZDA 6 Sport Wagon 4
7*		 Jun.2005 - Dec.2007

* Car models with the BOSE sound system use a separate amplifier. Optional MAZDA sound system translator TBXE-X001 is required for proper operation.
● On equipped vehicles, installation of optional parts FPCE-T001 enables the operation of the audio remote control switch on the steering wheel.
● By using an optional UAE-Y201DV, an on-dash monitor can be mounted without disturbing the frontal view.

[Difference from the Factory equipment]
● This model is compatible with the Factory DVD car navigation system but the TV function is disabled. (The TV functions on aftermarket car navigation system would operate properly.) Some functions such as the car navigation system sounds may be disabled.
● Audio functions on the information-center-display become disabled.
● Dimming function, that works during either head lights or parking lights are on, is disabled.
● Automatic Level Control (ALC) becomes disabled.
● Air conditioning control sound is disabled.
● Since the factory hazard lamp switch may not be relocated, the hazard lamp switch provided in this set is used.
● There are additional displays on the information-center-display for this set.
● The air conditioning control buttons and the hazard switch are continuously illuminated whenever the ACC is on. The dimming function (DIMMER) become disabled.
