TBXE-X001
Translator for BOSE sound system.
This is a set for a car with a BOSE sound system to use without changing a Factory amplifier, a Factory speaker. Combines wiring to be included in the following installation set with this set.
TBXE-T001 TBXE-T001R TBXE-T003 TBXE-T003R TBXE-T004 TBXE-T005
TBXE-T005R TBXE-T005K TBXE-T006 TBXE-T008 TBXE-T009 TBXE-T011

TBXE-X001

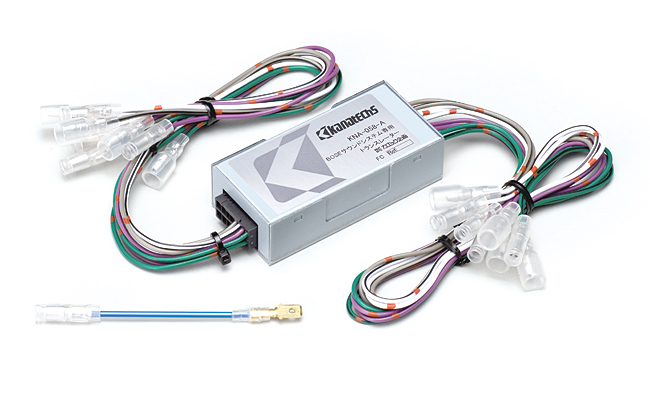

  • 1.SLS traslator
  • 2.Remote amplifier power supply conversion cord
Compatibility
Model Model Year note
MAZDA3 Nov.2005 - June 2009 ・Translator for BOSE sound system.
・This set is an add on with “TBXE-T005” or “TBXE-T005K” or “TBXE-T005R”.
MAZDA3 Oct.2003 - Nov.2005 ・Translator for BOSE sound system.
・This set is an add on with “TBXE-T001” or “TBXE-T001R”.
MAZDA6 Jun.2008 - Jan. 2010 ・Translator for BOSE sound system.
・This set is an add on with “TBXE-T008” or “TBXE-T009”.
Jun.2005 - Dec.2007 ・Translator for BOSE sound system.
・This set is an add on with “TBXE-T006”.
MAZDA6 Sedan / 5-door Jun.2008 - Jan. 2010 ・Translator for BOSE sound system.
・This set is an add on with “TBXE-T008” or “TBXE-T009”.
May.2002 - June.2005 ・Translator for BOSE sound system.
・This set is an add on with “TBXE-T004”
MAZDA6 Sport Wagon Jun.2008 - Jan. 2010 ・Translator for BOSE sound system.
・This set is an add on with “TBXE-T008” or “TBXE-T009”.
June.2002 - June.2005 ・Translator for BOSE sound system.
・This set is an add on with “TBXE-T004”.
Roadster

Please contact us for specific details.
Aug.2005 - up ・Translator for BOSE sound system.
・For BOSE sound system (Non-standard size AV+7 speakers) car of the Factory option, model year August 2006, an "audio-less panel" and "audio installation kit" Factory optional, "24P wiring connector for Mazda cars" are necessary.
・For BOSE sound system (Non-standard size AV+7 speakers) car of the Factory option, model year August 2005 – August 2006, the "audio-less panel" and "audio installation kit" plus "side brackets" Factory optional, "24P wiring connector for Mazda cars" are necessary.
・Car models with the Factory dealer optional navigation system for BOSE sound system ( car models without audio system+BOSE sound system) have not been examined.
・On equipped vehicles, installation of optional parts "FPCE-T001" enables the operation of the audio remote control switch on the steering wheel.
RX-8 Apr.2003 - June 2012 ・Translator for BOSE sound system.
・As for a car model year is from Apr.2003 to Feb 2008, this set is an add on with “TBXE-T003” or “TBXE-T003R”.

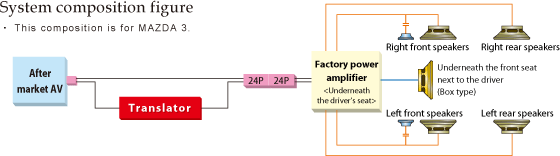

System composition figurepage top
